| Rated: | 12000LB(5443kg) single-line | |||||||
| Motor: | 6.6hp/4.9kw 12V | |||||||
| Gear： | 3-stage planetary | |||||||
| Ratio: | 216:1 | |||||||
| Fairlead: | 4-way roller fairlead | |||||||
| Wire: | φ9.5mm×27m | |||||||
| Drum: | φ64mm×224mm | |||||||
| Dims: | (L×W×H) 21.9''x6.5''x10.2''(557x165x260mm) | |||||||
| Pattern: | 10''x4.5''（254 x 114.3mm） | |||||||
| N.W: | 88lbs(40kg) | |||||||
| Packing: | 1pc/box,(630x245x405mm) | |||||||

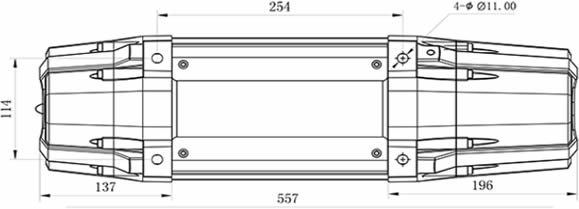

Mounting Bolt Pattern:
Dimensions
