| Rated: | 9500LB(4309kg) single-line | |||||||
| Motor: | 5.2hp/3.9kw 12V | |||||||
| Gear： | 3-stage planetary | |||||||
| Ratio: | 265:1 | |||||||
| Fairlead: | 4-way roller fairlead | |||||||
| Wire: | φ9.5mm×27m | |||||||
| Drum: | φ64mm×224mm | |||||||
| Dims: | (L×W×H)20.7''x6.4''x8.1''(527x163x205mm) | |||||||
| Pattern: | 10''x4.5''（254 x 114.3mm） | |||||||
| N.W: | 82.7lbs(37.5kg) | |||||||
| Packing: | 1pc/box,(600x245x370mm) | |||||||

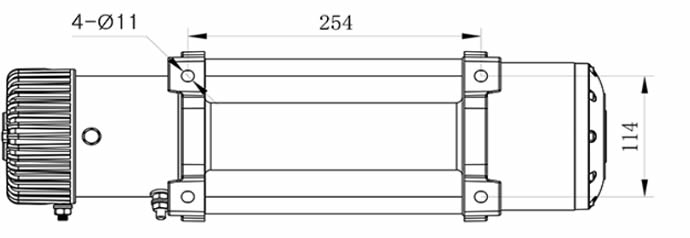

Mounting Bolt Pattern:
Dimensions
